μGPCsHHigh-Performance FA Controller
The μGPCsH controller boasts outstanding program compatibility with the μGPC Series, excellent communication I/F speed, and superior connectivity with a host PC or touch panel.
Catalog: μGPCsH（6.1MB）
Features and Functions
Easy-to-Understand μGPC Language and Comprehensive Open Network

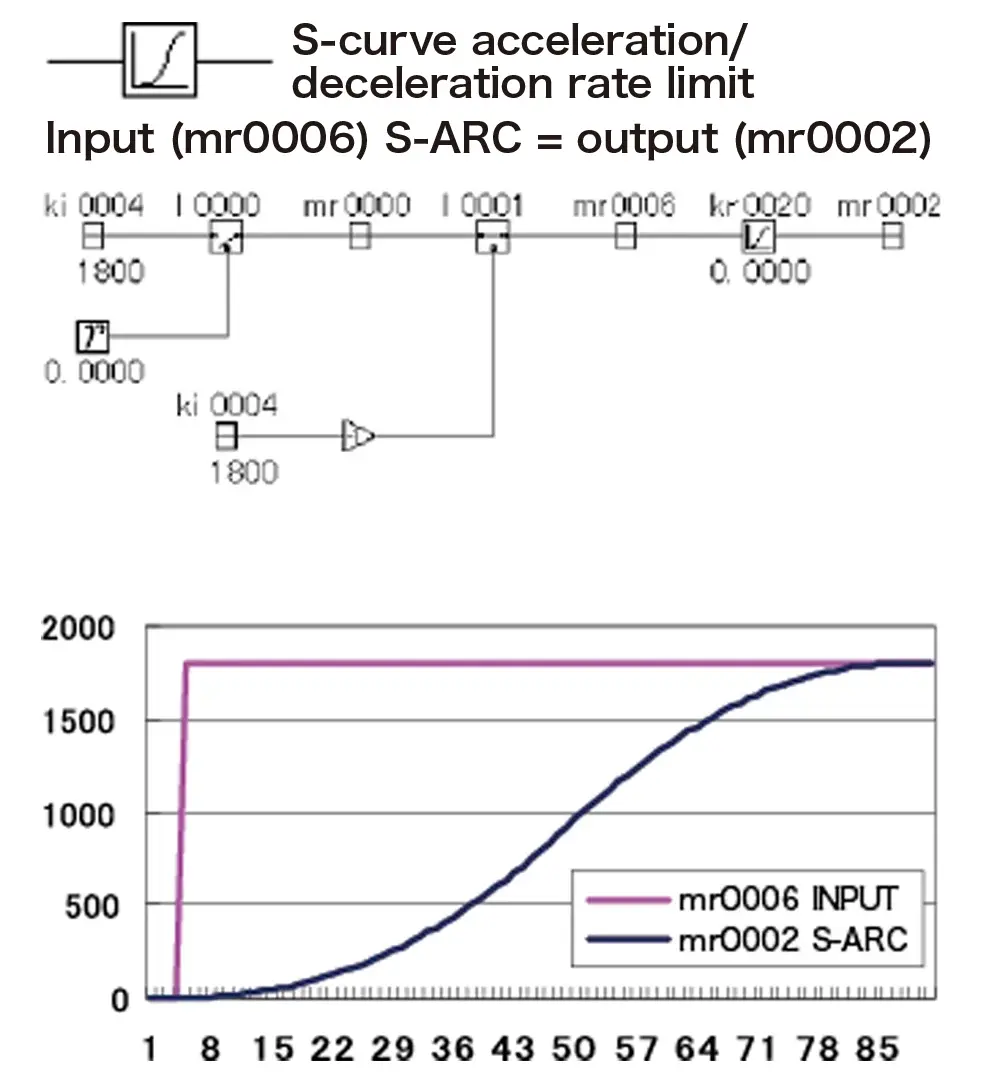

The μGPC language uses easy-to-understand ladder symbols and data flow symbols, and real number calculations can be performed with complete freedom. It also supports open networks such as Ethernet (TCP/IP), FL-net (OPCN-2), OPCN-1, and DeviceNet®, making it easy to construct a decentralized control system.
Programming Tools that Provide a Comfortable Design Environment
-
Simulation function: Both digital and analog conditions can be set freely.
-
Traceback function: Trigger conditions and sample cycles can be set freely up to 16 digital and analog points.
-
Log function: Checks CPU operation records in chronological order, and stores up to 1,024 communication logs.
-
Equipped with editing, debugging, and documentation functions.
Specifications
| Application | Small to large systems |
|---|---|
| Number of inputs/outputs | Max. 8,192 |
| Program capacity | 640 k words |
| Processing speed | Logical operations: 0.1 μS (contact commands) Real number calculations: 0.1 μS (addition commands) |
| Structure | Integrated into board |
| Operating ambient temperature | 0 to 55 °C |
| Storage temperature | -20 to 60 °C |
| Relative humidity | 30 to 95% RH (there should be no condensation) |
| Operating altitude | Height above sea level: 2,000 m or less |
Click here for information on the predecessor model.
Catalog: μGPCsx（17.3MB）
μGPCsx Manual (Hardware Edition)（1.1MB）
