Train Control Management System
On-board equipment is connected and managed based on the in-train communication network.
This system improves train control, improves passenger service, and reduces maintenance by organically combining various devices.

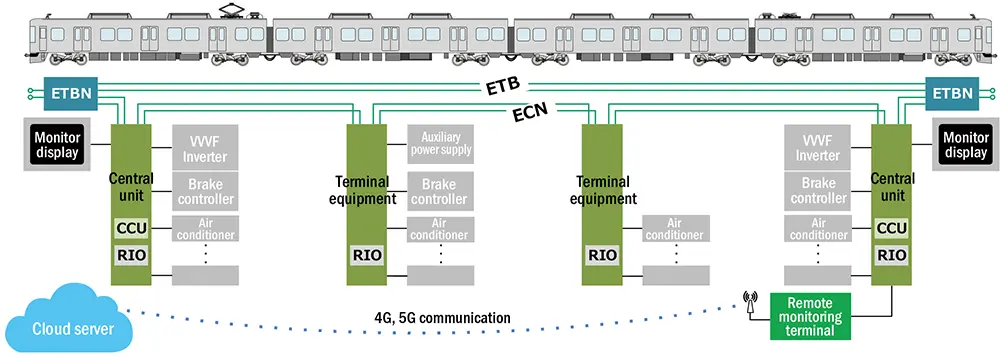

TCMS Configuration Example
Features
-
Data exchange with various devices is possible through digital input/output, analog input/output, RS-485 communication, and Ethernet communication.
-
Realizes powering with a control transmission function, train brake control, and train torque distribution.
-
By equipping the system with a remote monitoring terminal, fault record data, etc., can be read remotely, and commands can be transmitted from the ground side to the on-board system, supporting the realization of a train CBM system.
-
The network for fixed-composition trains conforms to IEC 61375 Part3-4 ECN.
-
ETBNs (Ethernet Train Backbone Nodes) are used for splitting and connecting networks.
