VF66RHigh Power Factor Power Regeneration PWM Converter
The VF66R is the successor series to the VF61R and VF64R for power supply harmonic suppression and energy saving. Based on the VF66B intelligent inverter, the VF66R inherits the concepts of the VF66B Series: enhanced customizability, improved usability, and environmentally friendly design.
Catalog: VF66R（1.3MB）
Features and Functions
Significant Suppression of Power Supply Harmonics
Inverter power supply harmonics are significantly suppressed, and total current distortion is 5% or less.

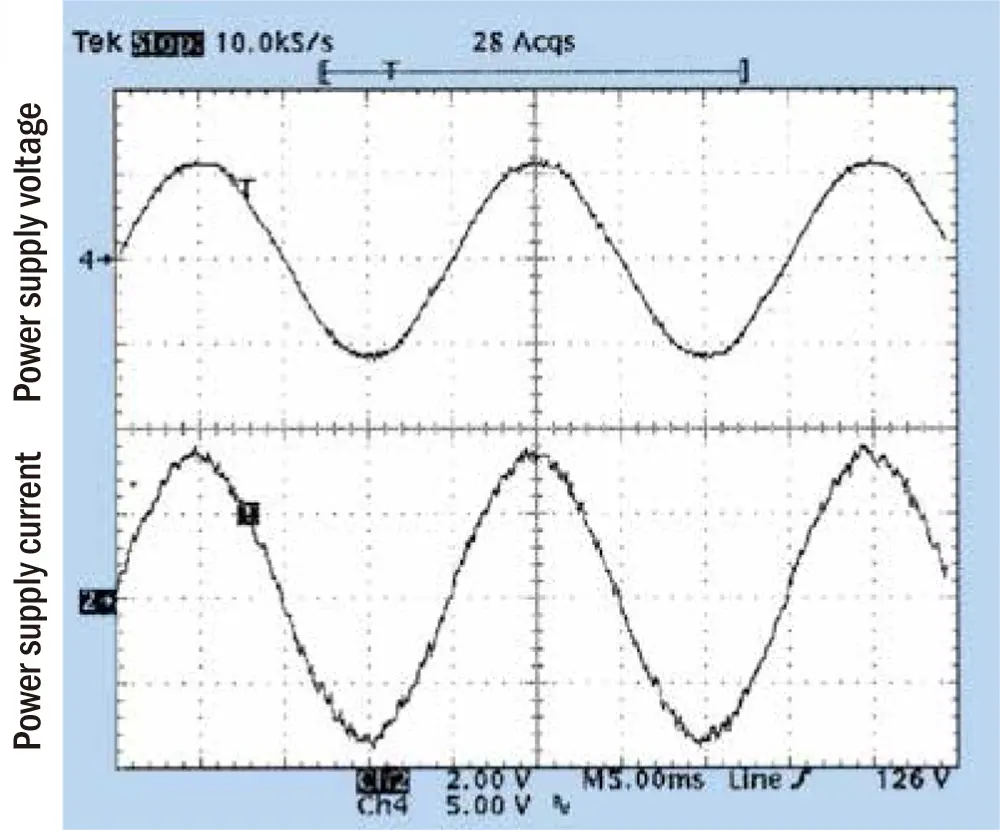

High Power Factor
High power factor (99% or more at rated load, and 95% or more at 30% of load or greater) can be ensured, reducing power supply equipment.

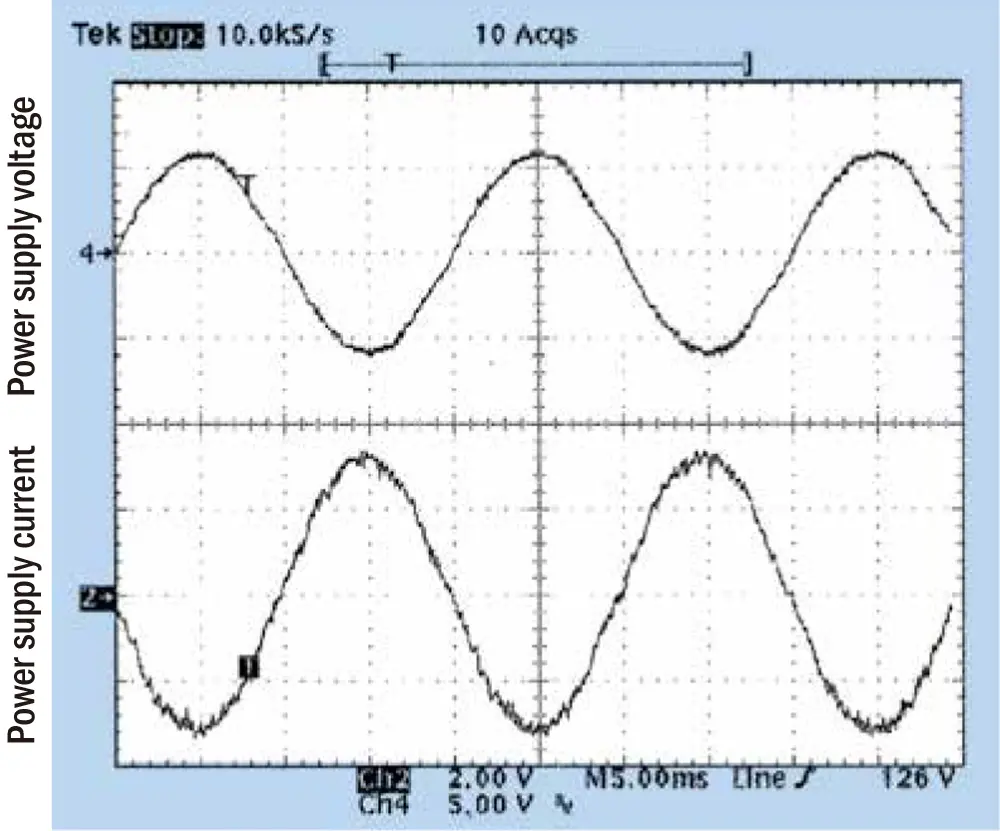

100% Continuous Power Regeneration Operation
The VF66R makes it possible to perform continuous regenerative operation, and instantaneous adaptation and system braking capability are greatly improved even in the event of sudden load fluctuations.
Equipped with 120-Degree Energization Mode
The VF66R features a PWM sine wave converter mode and 120-degree energization mode. The mode should be selected based on the application and environment.
Specifications
| Product Name | VF66R | |
|---|---|---|
| Applicable inverter capacity | 200 V class: 75 to 180 kW 400 V class: 75 to 1,000 kW |
|
| Control system | Voltage type current control system | |
| Input power rating and allowable fluctuation range | 200 V class: three-phase three-wire 200 V to 230 V ±10% 50/60 Hz ±5% 400 V class: three-phase three-wire 380 V to 460 V ±10% 50/60 Hz ±5% |
|
| DC voltage range | 200 V class: 312 to 358 V 400 V class: 600 to 716 V |
|
| Overload capacity | Rated AC current x 150% for 1 minute | |
| Relative harmonic content (current) | Total 5%, 3% or less each (at rated operation) | |
| Power factor | Possible to set from 45° delay to 45° advance (initial value: 0°, power factor: 1) | |
| Input signal* | Analog input | 2CH, 0 to 10 V / ±10 V / 4 to 20 mA |
| Contact input | 6CH | |
| Output signal* | Analog output | 2CH, 0 to ±10 V / 4 to 20 mA |
| Contact output | 2CH | |
PP66RControl Panel Converter
The PP66R contributes to space saving and reduced maintenance for the entire system while maintaining converter performance.
Features

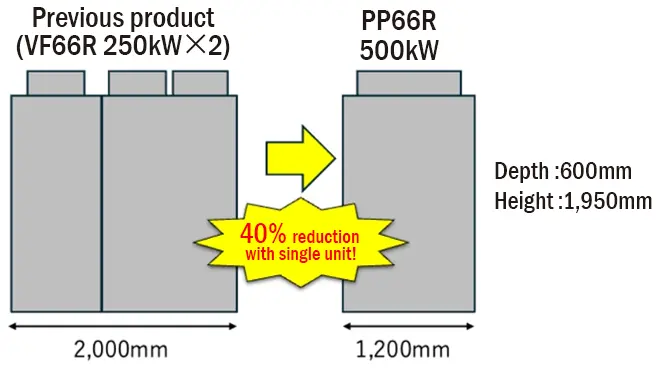

Miniaturization Through Optimization of Device Layout
By changing the device layout to suit the control panel, we achieved a 40% reduction in size compared to power control panels using our previous converters.
Improved Maintainability
The life of parts with limited lifetime (main circuit capacitor, cooling fan) has been extended, and the adoption of a cooling fan unit structure has resulted in improved workability and reduced the amount of time required for maintenance work.
Specifications
| Product Name | PP66R | |
|---|---|---|
| Applicable inverter capacity | 500kW | |
| Control system | Voltage type current control system | |
| Input power rating and allowable fluctuation range | Three-phase three-wire 380 to 460 V ±10% 50/60 Hz ±5% | |
| DC voltage range | 600 to 716 V | |
| Overload capacity | Rated AC current x 150% for 1 minute | |
| Relative harmonic content (current) | Total 5%, 3% or less each (at rated operation) | |
| Power factor | Possible to set from 45° delay to 45° advance (initial value: 0°, power factor: 1) | |
| Input signal* | Analog input | 2CH, 0 to 10 V / ±10 V / 4 to 20 mA |
| Contact input | 6CH | |
| Output signal* | Analog output | 2CH, 0 to ±10 V / 4 to 20 mA |
| Contact output | 2CH | |
Input/output when using IO66 option
