Mobile device for the conductor

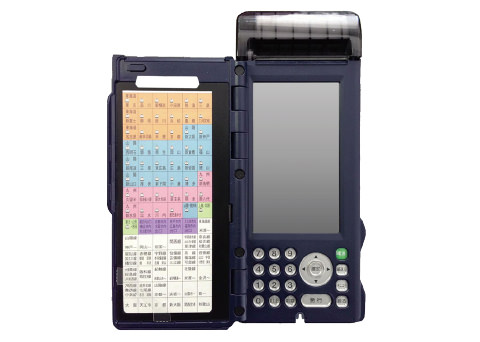

Main unit

Input/output controller

Charger

Toyo Denki develops and manufactures handheld terminals to issue tickets on trains and to support conductor operations.
In addition to fare collection, handheld terminals incorporate smart card readers to enhance service for customers with smart cards.
Terminals wirelessly receive reserved seating information, effectively streamlining the ticket checking work by conductors.

Features

  • 4.3 color LCD graphical user interface
  • The touchscreen accepts input from a finger or the attached pen
  • Support available for mobile packet communication
  • Thermosensitive roll paper printer built-in with print speed of 50 mm/second
  • Displays the content of smart passenger tickets
  • Data collection and device setting from outside is possible via IrDa
  • The extensive keys with 18 keys on the main unit, arrow keys, and 84 cover keys enable fast operation

Main specifications

Dimensions 201 (H) × 80 (W) × 34 (D) mm
Weight 500 g
OS Windows CE 6.0 R3 ©
CPU 32-bit ARM processor
Memory Main memory 256 MB
Flash memory 512 MB
Display LCD 4.3-inch full color LCD touchscreen (V480 × H272 dots)
Operation unit Function keys 18 keys and arrow keys
Station name sheet keys 84 keys
Communications interface Communications Permits implementation of DOCOMO and KDDI communications modules
IC R/W Reads smart cards
IrDA Up to 4 Mbps
Printer Printing method Thermal line printer
Printing density 8 dot/mm
Printing speed Up to 50 mm/s
Power supply Main battery Lithium-ion battery 7.4 V 2,200 mAh
