VF66BIntelligent Inverter
The VF66B inverter realizes 100% of your ideas, including energy conservation, with an extensive range of applications, customization functions, and PC tools that support design and testing.
Catalog: VF66B（2.1MB）
VF66B Instruction Manual（24.8MB）
Features and Functions
Customization Functions Tailored to System (Built-In PLC Functions)
The VF66B built-in PLC function consists of 18 types of control block, 36 types of data flow block, and 5 types of ladder block. Any control system can be constructed by combining these control blocks. (Program capacity: 16 kB, approx. 1,024 steps)
Compatibility with Wide Variety of Applications
The VF66B is a versatile inverter incorporating motor drive technology cultivated over many years, and is equipped with 5 modes in a single unit for induction motor and ED motor drive.
| Control Mode | Induction motor | ED motor | |||
|---|---|---|---|---|---|
| V/f control | Speed sensorless vector control | Vector control with speed sensor | Speed sensorless vector control | Vector control with speed sensor | |
| Speed control range | － | 1：150 | 1：1,000 | 1：100 | 1：1,000 |
| Starting torque | － | 200％ | 200％ | 150％ | 200％ |
5 VF66B 5 modes (Note) Refer to the overload capacity shown in the table below for starting torque characteristics.
Compliance with Overseas Standards
The VF66B inverter is available in models that comply with European and UL standards. They are equipped with STO functions compatible with PLd and SIL2 to further improve safety. Please contact us for details.
Compliance labels
Affixed to inverters complying with the 2006/95/ECEMC Low Voltage Directive, 2004/108/EC Directive, and 2006/42/EC Machinery Directive.
Affixed to inverters that comply with UL508C.
Specifications
| Control system | ED motor/induction motor vector control with speed sensor ED motor/induction motor with speed sensorless vector control 5 Modes of Induction Motor V/f Control |
|---|---|
| Capacity | 200 V class: 11 to 180 kW 400 V class: 11 to 1,000 kW |
| Power rating | 200 to 220 V 380 to 460 V ±10% 50/60 Hz ±5% |
| Output frequency | 0.1 to 400 Hz |
| Overload capacity | 150% for 1 minute, 200% for 3 seconds (150% max. at 75 kW or more when inverter cold) |
| Network options* | OPCN-1, PROFIBUS DP, DeviceNet®, CC-Link, RS-422 / 485 (Modbus RTU), RS-232C EtherNet/IP® |
| Input signal | Analog: 0 to 10 V/±10 V/4 to 20 mA (standard: 1CH, optional: max. 2CH) |
| Function terminals: 5CH (standard), 6CH (optional) | |
| Output signal | Analog: 0 to ±10 V/4 to 20 mA (standard: 1CH, optional: max. 2CH) PWM of 6 times output frequency for rotation/frequency meter |
| Function terminals: 2CH (standard), 2CH (optional) |
- OPCN-1: Compliant class - TUPE-S52I
- CC-Link: CC-Link Partner Association certified
- PROFIBUS DP: PROFIDRIVE-Profile compliant
- Modbus RTU: RS-485 compliant
- DeviceNet®: ODVA Conformance Test Software Ver.A-14 compliant
VF100Intelligent Inverter
The VF100 inverter inherits the extensive range of applications and customization functions of the VF66 Series, yet has further evolved to contribute to a sustainable society.
Catalog: VF100（2.7MB）
Features and Functions
Compact Device and Control Panel Design Possible
Adopting a structure in which the control panel is stored has reduced installation space by 45% or more compared with our previous product (VF66 Series). Furthermore, induction motors are available in two ratings (ND: standard load, LD: light load), allowing the most suitable inverter to be selected based on the application.
Reduced Maintenance Costs
By using long-life parts for parts with limited lifetime, the expected design life can be extended beyond that of our previous product (VF66 Series), and maintenance costs can be reduced by extending the maintenance cycle.
Ambient temperature: 40 °C, Load factor: 100% (ND spec.), 80% (LD spec.), 24-hour operation
Cooling fan: 10 years, Main circuit capacitor: 10 years
Enhanced Environmental Resistance
SGMCC (highly corrosion-resistant plated steel sheet) with excellent corrosion resistance is used for the sheet metal of the inverter body.
Specifications
| Control system | 5 modes Induction motor: V/f control, Vector control with speed sensor, Speed sensorless vector control Permanent magnet synchronous motor (Toyo Denki ED motor): Vector control with speed sensor,Speed sensorless vector control |
|||
|---|---|---|---|---|
| Capacity | Motor type | ED motor | Induction Motor | |
| 200V | ND | 2.2 to 7.5 kW | 2.2 to 7.5 kW | |
| LD | -* | 3.7 to 11 kW | ||
| 400V | ND | 2.2 to 7.5 kW | 2.2 to 7.5 kW | |
| LD | -* | 3.7 to 11 kW | ||
| Power rating | Three-phase 200 to 220 V ±10% Three-phase 380 to 460 V ±10% 50/60 Hz ±5% | |||
| Output frequency | 0.1 to 400.0 Hz | |||
| Overload capacity | ND spec.: Max. 150% (1 minute), max. 200% (3 seconds) LD spec.: Max. 110% (1 minute) |
|||
| Network options* | OPCN-1, PROFIBUS DP, DeviceNet®, RS-422 / 485 (Modbus RTU), RS-232C EtherNet/IP® | |||
| Input signal | Analog: 0 to 10 V / ±10 V / 4 to 20 mA (standard: 1CH, optional: max. 2CH) Function terminals: 5CH (standard) 6CH (optional) |
|||
| Output signal | Analog: 0 to ±10 V / 4 to 20 mA (standard: 1CH, optional: max. 2CH) PWM of 6 times output frequency for rotation/frequency meter Function terminals: 2CH (standard) 2CH (optional) |
|||
*ED motors cannot be run in LD mode.
- OPCN-1: Compliant class - TUPE-S52I
- PROFIBUS DP: PROFIDRIVE-Profile compliant
- Modbus RTU: RS-485 compliant
- DeviceNet®: ODVA Conformance Test Software Ver.A-14 compliant
PP66BControl Panel Inverter
The PP66B contributes to space saving and reduced maintenance for the entire system while maintaining inverter performance.
Features

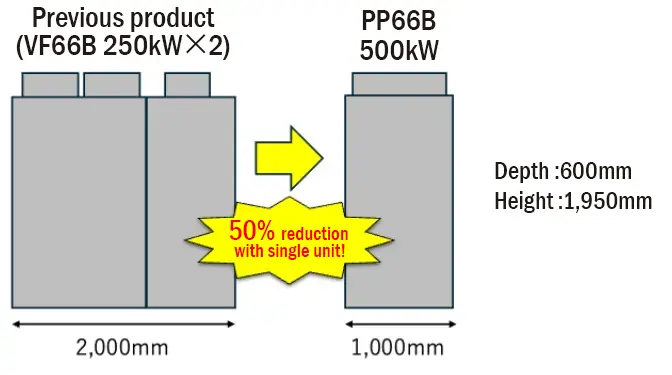

Miniaturization Through Optimization of Device Layout
By changing the device layout to suit the control panel, we achieved a 50% reduction in size compared to power control panels using our previous inverters.
Improved Maintainability
The life of parts with limited lifetime (main circuit capacitor, cooling fan) has been extended, and the adoption of a cooling fan unit structure has resulted in improved workability and reduced the amount of time required for maintenance work.
Specifications
| Product Name | PP66B | |
|---|---|---|
| Applicable motor capacity | 500kW | |
| Control system | Induction Motor | V/f control, Vector control with speed sensor |
| Speed sensorless vector control | ||
| ED motor | Vector control with speed sensor | |
| Speed sensorless vector control | ||
| Input voltage and allowable fluctuation range | 513 to 716 VDC ±10% (max. voltage: 716 V) | |
| Output frequency | Induction Motor | 0.1 to 400.0 Hz |
| ED motor | 0 to 400.0 Hz | |
| Rated output current | 920A | |
| Overload capacity | 150% for 1 minute | |
| Network options | OPCN-1, PROFIBUS DP, DeviceNet®, RS-485 (Modbus RTU), EtherNet/IP® | |
| Input signal | Analog input | 1CH, 0 to 10 V / ±10 V / 4 to 20 mA |
| (rotation speed/frequency commands, torque commands) | ||
| Function terminals | 5CH | |
| (rotation speed/frequency commands, external fault signals, run commands, emergency stop, etc.) | ||
| Output signal | Analog output | 1CH, 0 to ±10 V / 4 to 20 mA (standard: 1CH) |
| (output voltage, output torque, rotation speed/output frequency, built-in PLC, etc.) | ||
| Function terminals | 2CH | |
| (rotation speed/frequency detection, operation signals, torque detection, fault signals, etc.) | ||
*The product names and network names indicated here are the trademarks or registered trademarks of their respective companies.
Options
CC66-Z Instruction Manual (CC-Link)（1.7MB）
CC66-Z Communication Protocol Manual (CC-Link)（0.847MB）
OPCN66-Z Instruction Manual (JEMA-NET)（1.3MB）
OPCN66-Z Protocol Manual (JEMA-NET) （1.0MB）
IO66-Z Instruction Manual（1.4MB）
DNET66-Z Instruction Manual（1.4MB）
DNET66-Z Communication Protocol Manual（1.0MB）
PBUS66-Z Instruction Manual（0.867MB）
PBUS66-Z Communication Protocol Manual（1.3MB）
ASYC66-Z Instruction Manual（3.2MB）
EIP66-Z Instruction Manual（1.1MB）
