High-speed/advanced-function FA controller μGPCsH

高速・高機能FAControllerμGPCsH

This controller has complete program compatibility with the μGPC Series, features improved communication interface speed, and offers exceptional connectivity with host PCs, touch panels, and other equipment.

Features/functionality

Easy-to-understand μGPC language and rich open networks

The μGPC language employs easy-to-understand ladder symbols and dataflow symbols, enabling unrestricted real-number operations. It also supports open networks, including Ethernet, FL-net (OPCN-2), OPCN-1, PROFIBUS DP, and DeviceNet, making it easy to build a distributed control system.

データフローとその特性

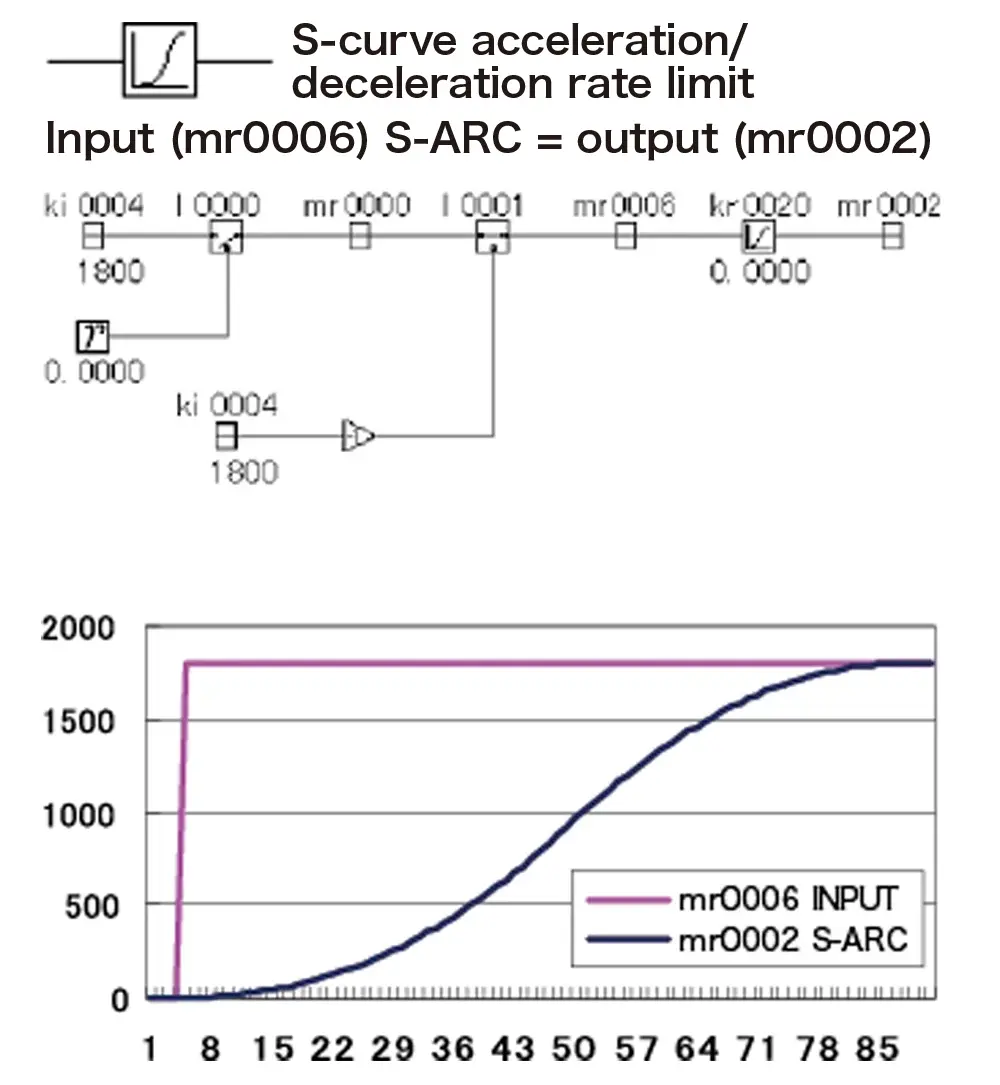

Dataflow and its characteristics

Programming tool providing a convenient design environment

  • Simulation functionality: Even digital/analog conditions can be freely set.
  • Traceback functionality: Up to 16 digital and 16 analog points. Trigger conditions and sample cycle can also be freely set.
  • Log functionality: CPU operation log can be viewed in the order that information was recorded.
    Up to 1,024 communication log entries can be stored.
  • Other functionality: Editing, debugging, and document creation.
プログラミングツール画面

Programming tool screen

Web-based remote monitoring

The controller is equipped with web-based monitoring functionality for the status I/O state of PLC via the Internet, making it possible to monitor faults, operation data, and system operation, as well as conduct maintenance, all with a web-based interface. In addition, event-driven data transmission is possible via email.

ネットワークイメージ

Network diagram

Specifications

Application Small to large-scale system
Number of inputs/outputs Max. 8,192
Program capacity 320 k words
Processing speed Logic operations: 0.1 μS (contact instructions), Real number operations: 0.15 μS (addition operations)
IP class/cooling method Built-in IP30 control panel/Natural cooling
Operating ambient temperature 0~55 °C
Storage temperature -25~85 °C
Relative humidity 20 to 95% RH (no condensation allowed)
Operating altitude 2,000 m above sea level or less
Web-based remote monitoring Simultaneous connection: 5, HTTP version: 1.0-1.1, Security: BAIC authentication, Number of accounts: 16
