High-capacity AC servo amp VF66SV

大容量ACサーボアンプVF66SV

From hydraulic to electric servo--A revolution in the structure of industrial machinery. Welcome to the world of high-capacity servos.

Features/functionality

VF66SV servo amp with built-in high precision positioning function

Speed control range of 1 to 10,000
The combination of a servo motor and high-resolution encoder enables a speed control rate of 1 to 10,000 using real number operations.

25-bit angle/position control
A high-resolution angle control/position control of 33,554,432 p/r is achieved using a 25-bit absolute encoder.

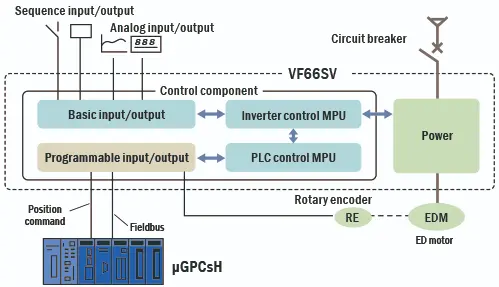

VF66SV configuration diagram

VF66SV configuration diagram

Servo motor with low inertial and a high output of 505 kW

S-DSD series motor

S-DSD series motor

The S-DSD series of high-speed, low-inertia motors has a maximum RPM of 16,000min-1 and is capable of a torque response frequency of up to 2.4 kHz.*
*Special specification-compatible product
*Detailed specifications are provided on here.
*Please contact us for more information.

Direct-drive motor with max torque of about 8,000 Nm

Direct-drive motor

Direct-drive motor

Delivers acceleration performance and high-precision control not possible with conventional deceleration mechanisms.
(Application example)
11 kW 0 to 2 0 min-1 Rated torque: 5,252 Nm Max. torque: 7,878 Nm
55 kW 0 to 300 min-1 Rated torque: 1,751 Nm Max. torque: 2,626 Nm
*Detailed specifications are provided on here.

Specifications

Control method Vector control with speed sensor
Capacity 200 V class: 5.5 to 180 kW 400 V class: 2.2 to 1,000 kW
Rated power 200~220 V 380~460 V±10% 50/60 Hz±5%
Output frequency 0 to 550 Hz (supports up to 1,500 Hz with a special specification product)
Overload capacity 150% for 1 minute 200% for 3 seconds (when at low temperature, 75 kW or more is 150% max)
Network Conforms with PROFIBUS DP, CC-Link, OPCN-1 and other fieldbuses
Input signal Analog ±10 V (2CH) 8 multifunction inputs
Output signal Analog ±10 V (2CH) 3 multifunction outputs
